PV Fuses & Holders
MOREDAY DC PV Fuse 30A (10×38 gPV)
DC-rated 30A photovoltaic fuse link, 10×38 mm gPV. Fits standard PV fuse holders.
RM 5.00
In stock — ready to ship
SKU EP-FUSE-HOLDER-1500
MOREDAY DC PV Fuse with Holder (1500V, 30A)
Complete DIN rail PV fuse holder with a 30A fuse fitted. Rated 1500V DC, with a lever that isolates the string.
RM 25.00
Price shown in Malaysian Ringgit. Delivery calculated at checkout.
In stock — ready to ship
- Ships from Sandakan. Sabah 1–3 working days, Sarawak and Peninsular 3–7. Self-collect available at our store.
- 1 year warranty, handled locally — no shipping a fault overseas.
- Supplied by MOREDAY. Datasheets and certificates available on request.
About this product

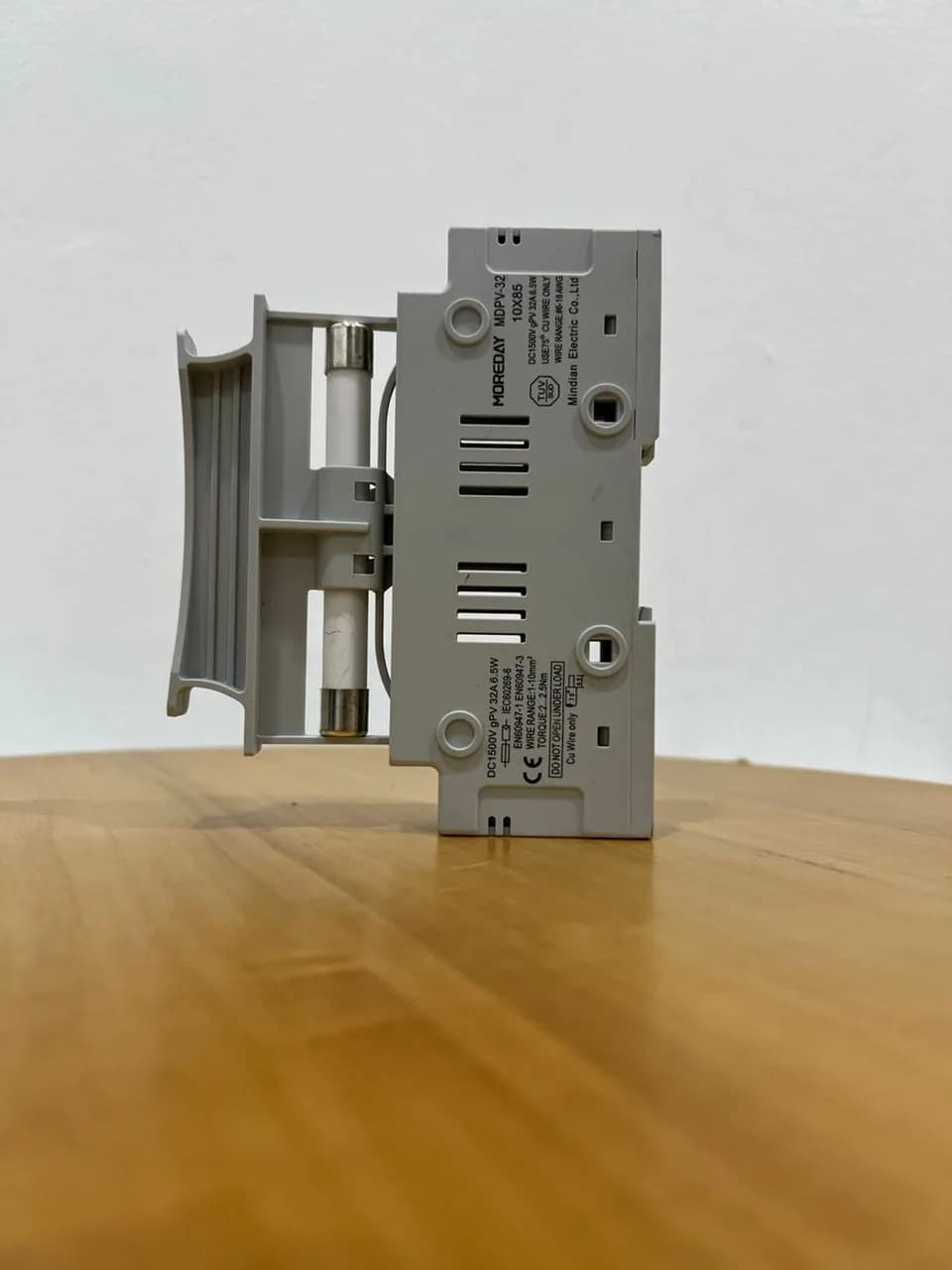

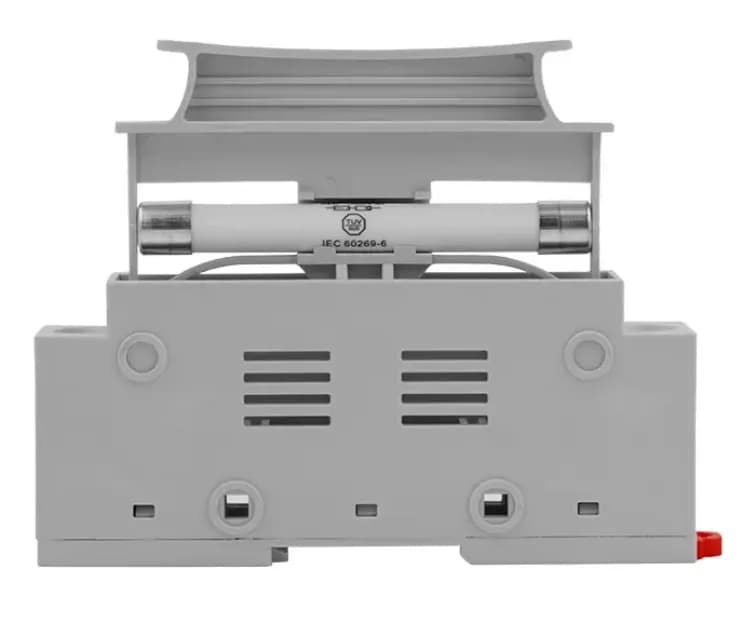

A complete string protection unit: a DIN rail fuse holder rated for 1500V DC with a 30A gPV fuse already fitted. Lift the lever and the string is isolated, which makes servicing an array far safer than pulling connectors under load.
The holder takes standard 10×38 mm gPV cartridges, so replacing a blown fuse later costs a few Ringgit rather than replacing the whole assembly.
One habit worth keeping: never open a PV fuse holder under load. Break the circuit at the isolator first. The warning is moulded into the housing for a reason — a DC arc does not self-extinguish.
Specifications
Ratings
- Rated voltage
- 1500 V DC
- Fuse fitted
- 30 A gPV
- Accepts
- 10 × 38 mm gPV fuse links
- Application
- Photovoltaic string protection
Build
- Isolation
- Lever-operated disconnect
- Ingress protection
- IP20
- Supplied as
- Holder with fuse fitted
Compliance
- Standards
- IEC/EN 60947-1, IEC/EN 60947-3
- Certifications
- CE
Installation
- Mounting
- 35 mm DIN rail
- Wire range
- 1–10 mm², 75 °C copper
Support
- Warranty
- 1 year
