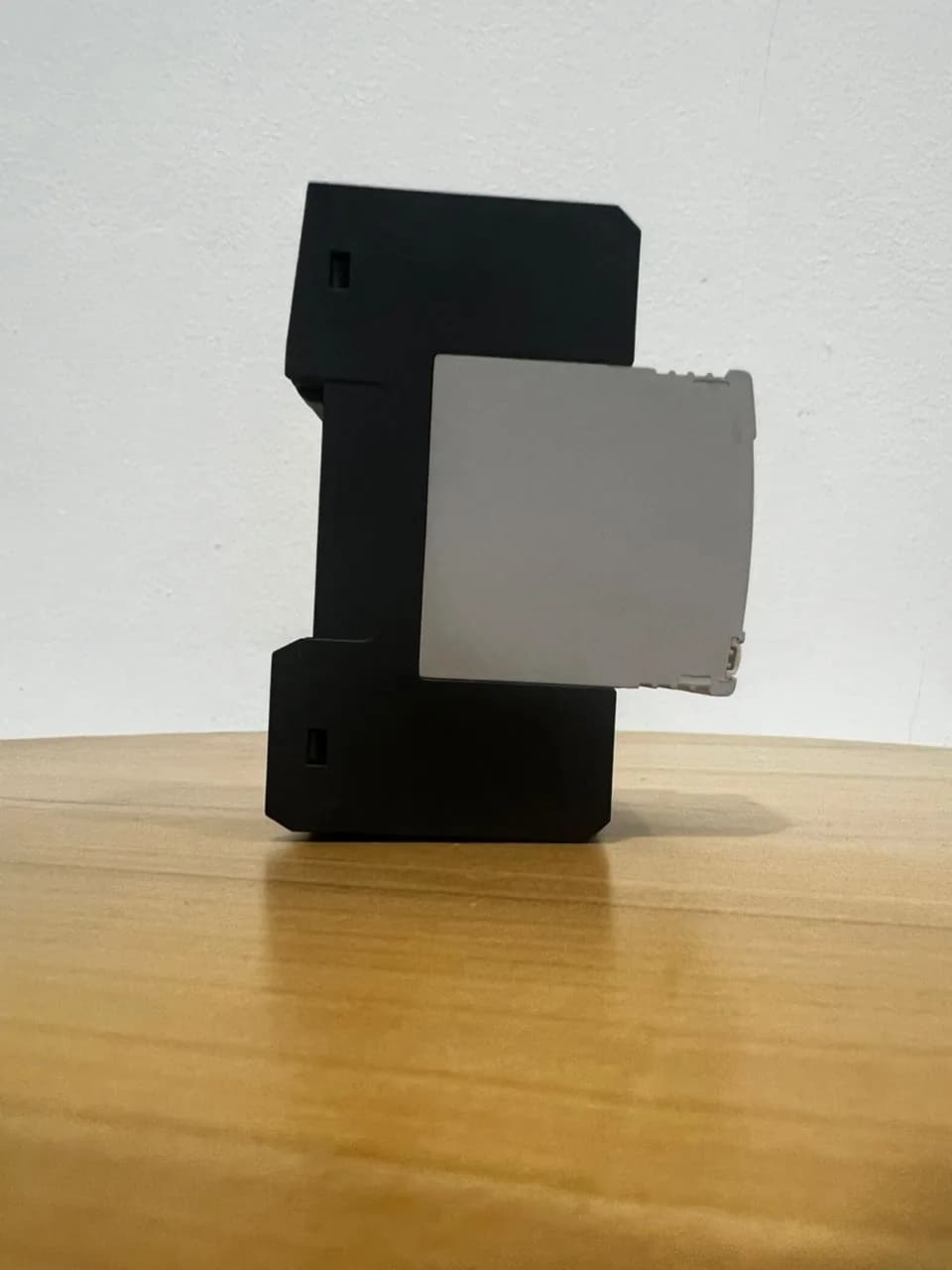

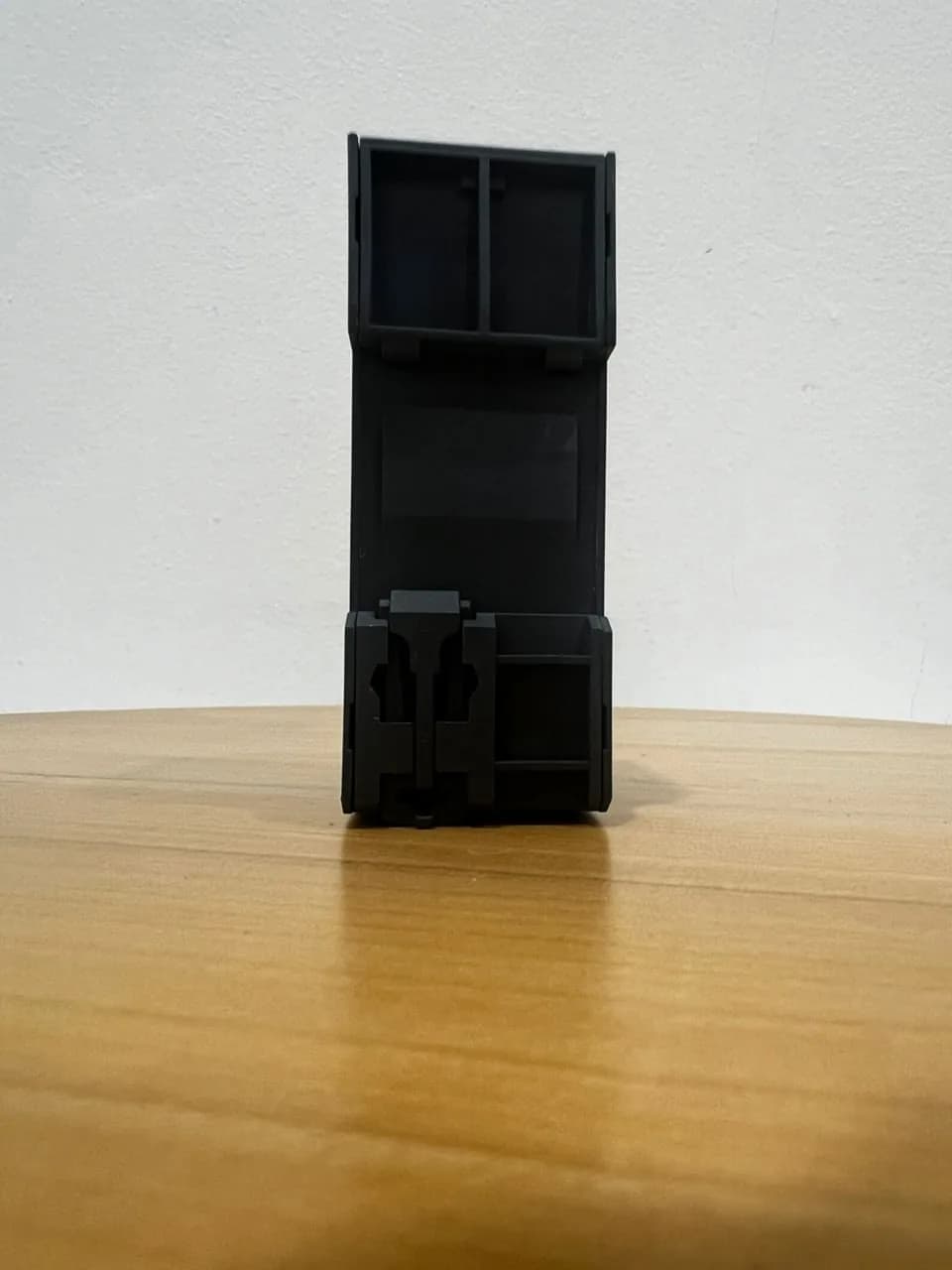

MOREDAY AC Surge Protection Device 2P (MD1, 275V, 40kA)
Type 2 AC surge arrester for single-phase boards. Uc 275V, In 20kA, Imax 40kA, on DIN rail.
RM 35.00
Price shown in Malaysian Ringgit. Delivery calculated at checkout.
In stock — ready to ship
- Ships from Sandakan. Sabah 1–3 working days, Sarawak and Peninsular 3–7. Self-collect available at our store.
- 2 year warranty, handled locally — no shipping a fault overseas.
- Supplied by MOREDAY. Datasheets and certificates available on request.
About this product
Sabah gets a great deal of lightning, and most equipment damage does not come from a direct strike — it comes from the surge that travels down the supply afterwards. A Type 2 SPD clamps that surge before it reaches anything expensive.
This is the two-module version for single-phase distribution boards, protecting live and neutral. It fits on DIN rail alongside your MCBs, and has a window that turns from green to red once the module has absorbed all it can and needs replacing. The modules are individually replaceable, so a surge event does not mean buying the whole unit again.
On any installation with a solar inverter, an SPD is not optional. It costs a fraction of what it protects.
Specifications
Ratings
- Model
- MOREDAY MD1-2P
- Configuration
- 2 pole (2 modules)
- SPD type
- Type 2 (Class II)
- Max continuous operating voltage (Uc)
- 275 V AC
- Nominal discharge current (In)
- 20 kA (8/20 µs)
- Max discharge current (Imax)
- 40 kA (8/20 µs)
- Voltage protection level (Up)
- ≤ 1.8 kV
- Response time
- < 25 ns
Build
- Status indicator
- Green / red window, per module
- Modules
- Individually replaceable
- Ingress protection
- IP20
- Operating temperature
- −40 °C to +85 °C
Compliance
- Standards
- IEC 61643-11
- Certifications
- CE, RoHS
Installation
- Mounting
- 35 mm DIN rail
Support
- Warranty
- 2 years
