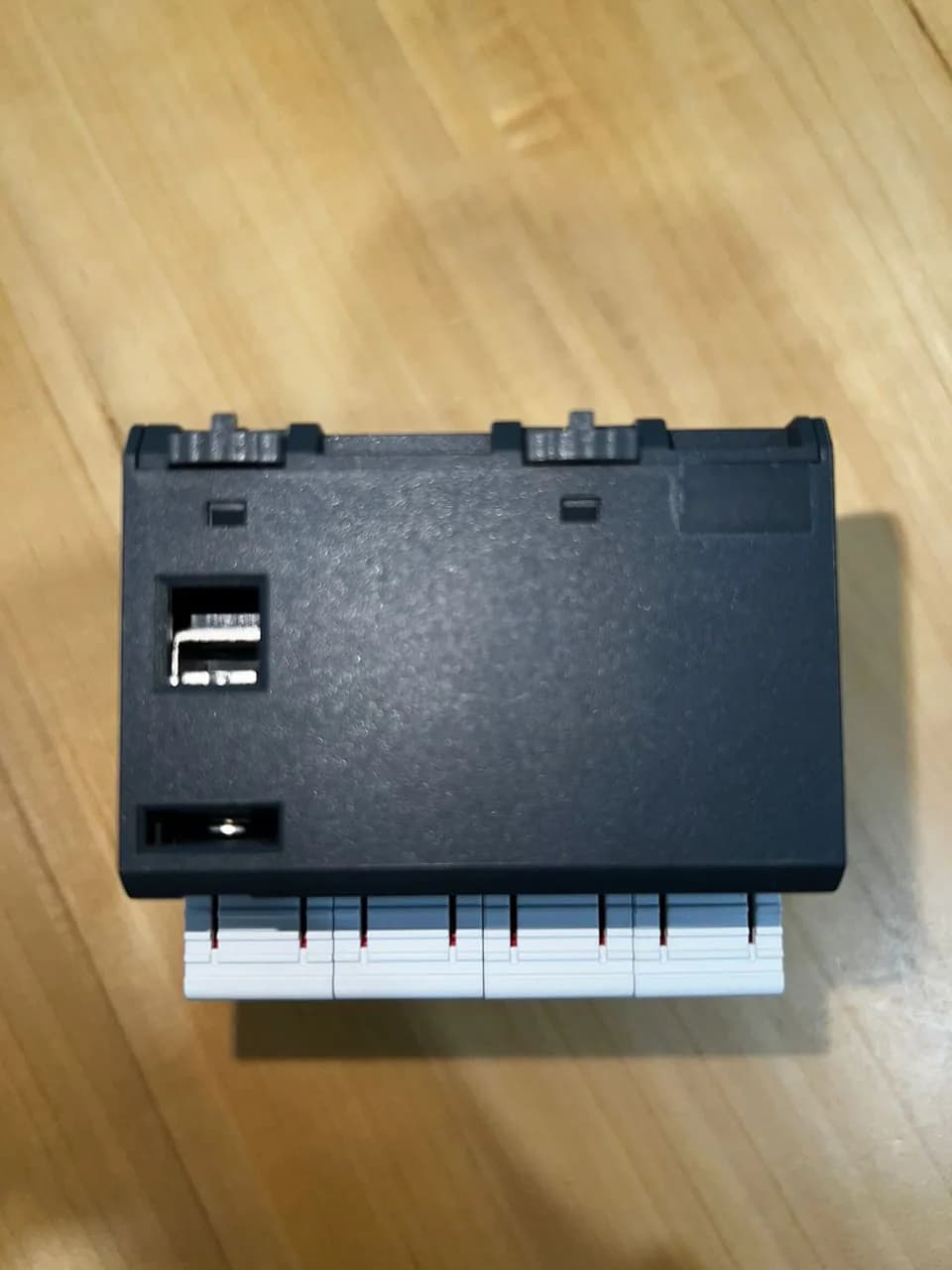

MOREDAY AC Surge Protection Device 4P (MD1, 420V, 40kA)
Type 2 AC surge arrester for three-phase boards. Uc 420V, In 20kA, Imax 40kA.
RM 65.00
Price shown in Malaysian Ringgit. Delivery calculated at checkout.
In stock — ready to ship
- Ships from Sandakan. Sabah 1–3 working days, Sarawak and Peninsular 3–7. Self-collect available at our store.
- 2 year warranty, handled locally — no shipping a fault overseas.
- Supplied by MOREDAY. Datasheets and certificates available on request.
About this product
The four-module version of the MD1, for three-phase distribution boards. It protects all three phases plus neutral at a higher continuous operating voltage of 420V, which is what a 415V three-phase supply needs.

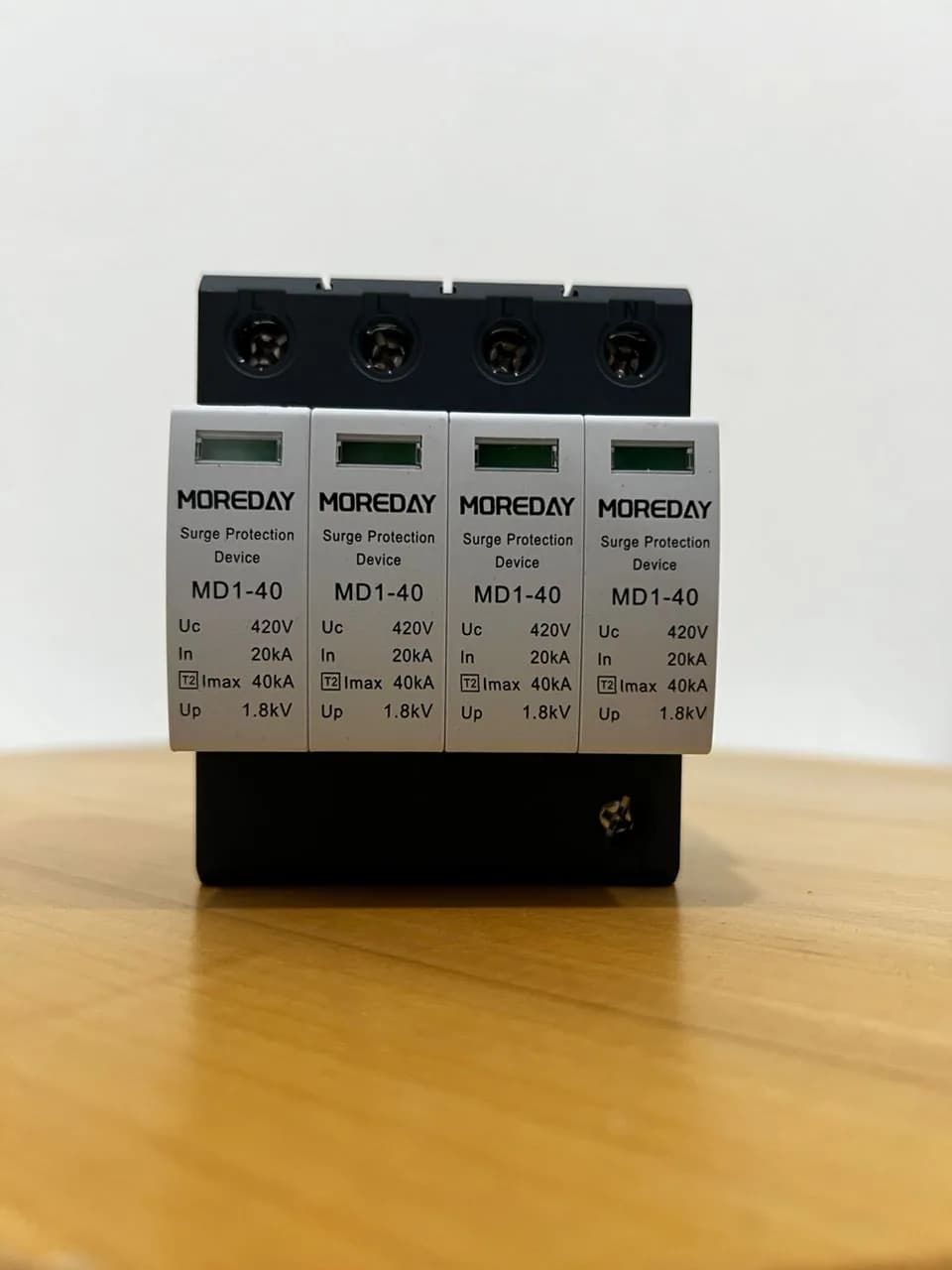

Each module carries its own status window, so you can see at a glance which one has taken a hit. Modules are individually replaceable.
Fit this at the origin of a three-phase installation, and a second Type 2 device closer to sensitive equipment if the cable run is long.
Specifications
Ratings
- Model
- MOREDAY MD1-4P
- Configuration
- 4 pole (4 modules)
- SPD type
- Type 2 (Class II)
- Max continuous operating voltage (Uc)
- 420 V AC
- Nominal discharge current (In)
- 20 kA (8/20 µs)
- Max discharge current (Imax)
- 40 kA (8/20 µs)
- Voltage protection level (Up)
- ≤ 2.8 kV (MD1 series rating)
- Response time
- < 25 ns
Build
- Status indicator
- Green / red window, per module
- Ingress protection
- IP20
- Operating temperature
- −40 °C to +85 °C
Compliance
- Standards
- IEC 61643-11
- Certifications
- CE, RoHS
Installation
- Mounting
- 35 mm DIN rail
Support
- Warranty
- 2 years
