MOREDAY DC PV Surge Protection Device 2P (MDSP-1000, 40kA)
Type 2 DC surge arrester for 1000V photovoltaic strings. Ucpv 1000V, In 20kA, Imax 40kA, Up 3.5kV.
RM 50.00
Price shown in Malaysian Ringgit. Delivery calculated at checkout.
In stock — ready to ship
- Ships from Sandakan. Sabah 1–3 working days, Sarawak and Peninsular 3–7. Self-collect available at our store.
- 2 year warranty, handled locally — no shipping a fault overseas.
- Supplied by MOREDAY. Datasheets and certificates available on request.
About this product
A solar array is a large metal structure in an open field, wired back to an expensive inverter. It is close to an ideal lightning target, and the surge travels down the DC string cables.
This is a DC-specific arrester rated for 1000V PV strings. Do not substitute an AC SPD here — DC current never crosses zero volts the way AC does, so a device not designed for DC cannot reliably extinguish the arc it has to break.

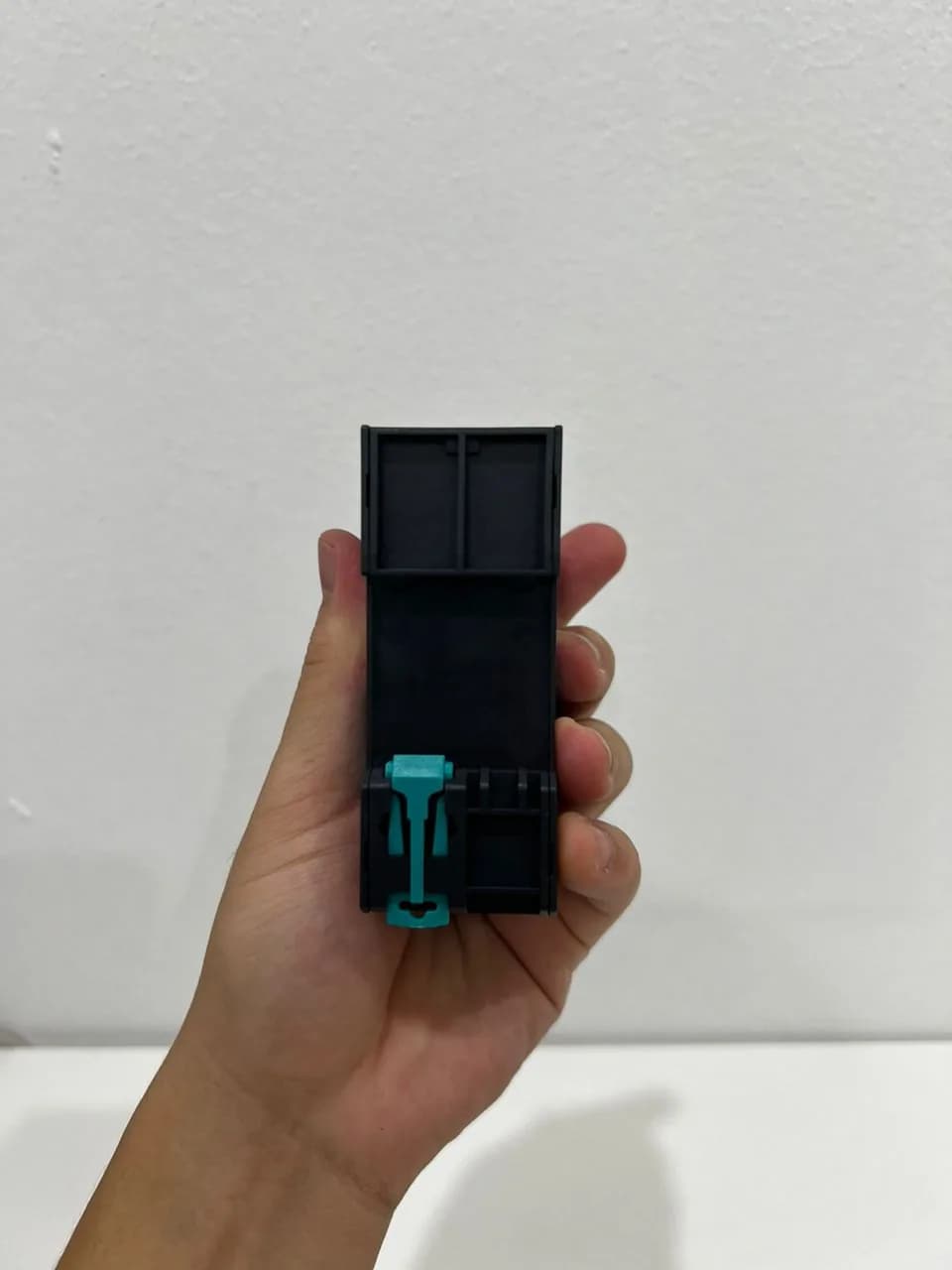

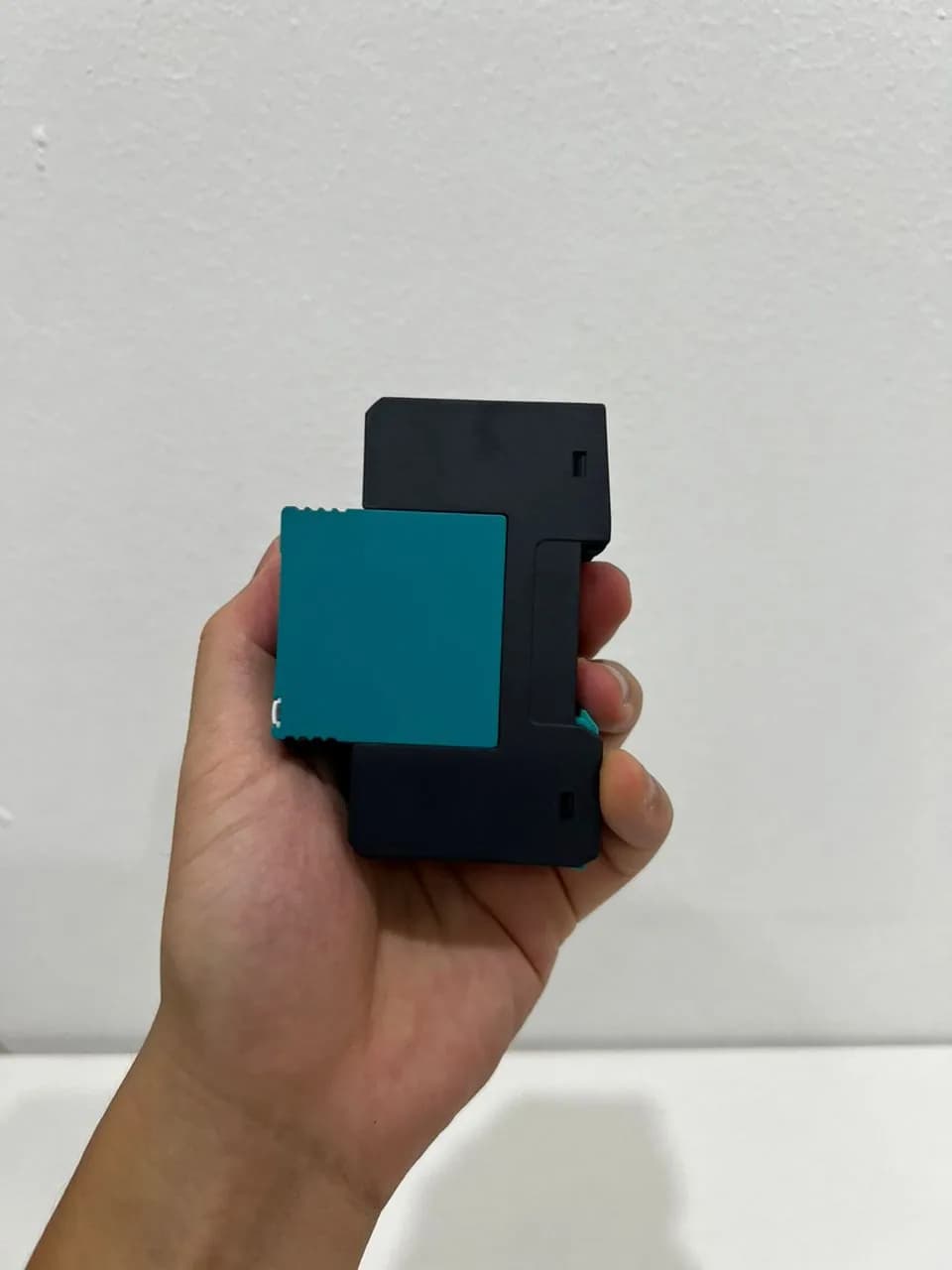

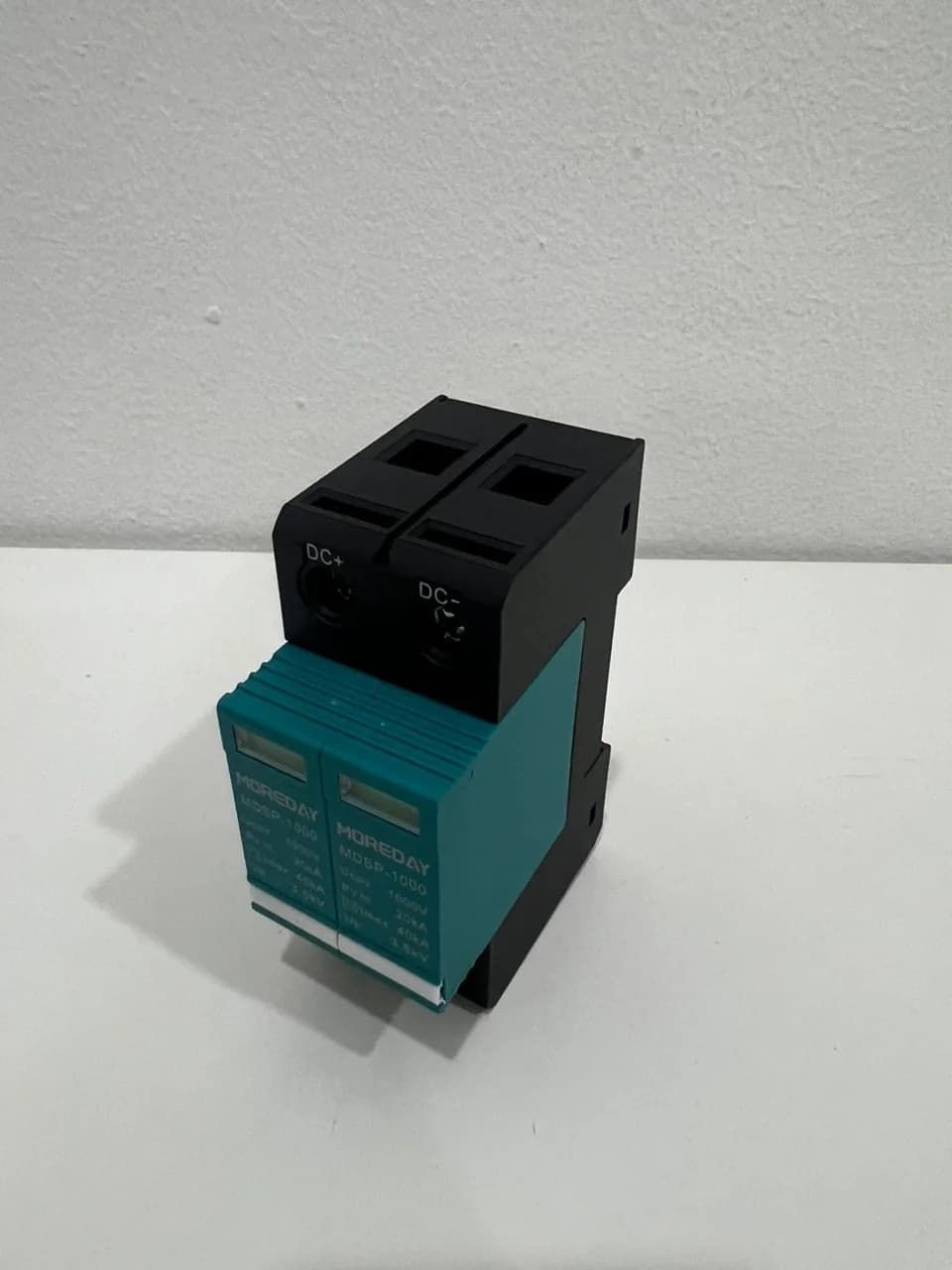

Two modules covering DC+ and DC−, with green/red status windows, on standard 35 mm DIN rail. Fit it in the combiner box or at the inverter DC input.
Specifications
Ratings
- Model
- MOREDAY MDSP-1000
- SPD type
- Type 2 (DC / PV)
- Max PV operating voltage (Ucpv)
- 1000 V DC
- Nominal discharge current (In)
- 20 kA (8/20 µs)
- Max discharge current (Imax)
- 40 kA (8/20 µs)
- Voltage protection level (Up)
- 3.5 kV
- Response time
- ≤ 25 ns
- Residual current at Uc
- < 0.5 mA
Build
- Terminals
- DC+ / DC−
- Width
- 2 modules
- Status indicator
- Green / red window
- Ingress protection
- IP20
Compliance
- Standards
- EN 50539-11
- Certifications
- CE, CB, TUV
Installation
- Mounting
- 35 mm DIN rail
Support
- Warranty
- 2 years
